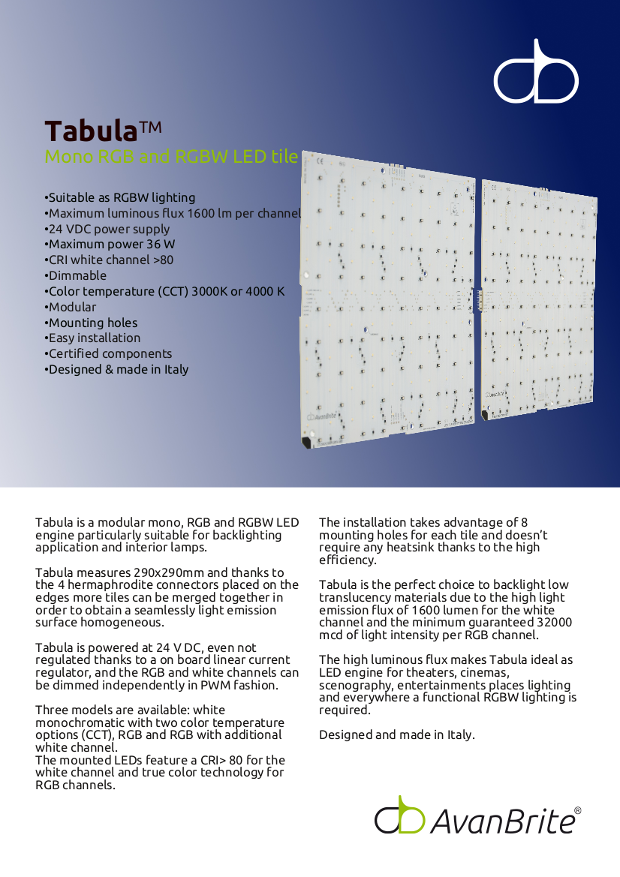

Tabula. Mono RGB and RGBW LED tile

Tabula™ is a modular mono, RGB and RGBW LED engine particularly suitable for backlighting application and interior lamps. Tabula measures 290x290mm and thanks to the 4 hermaphrodite connectors placed on the edges more tiles can be merged together in order to obtain a seamlessly light emission surface homogeneous.

Three models are available: white monochromatic with two color temperature options (CCT), RGB and RGB with additional white channel. RGB and white channels can be dimmed independently in PWM fashion. The mounted LEDs feature a CRI> 80 for the white channel and true color technology for RGB channels.

Tabula is the perfect choice to backlight low translucency materials due to the high light emission flux of 1 600 lumen for the white channel and the minimum guaranteed 32000 mcd of light intensity per RGB channel.

The high luminous flux makes Tabula ideal as LED engine for theaters, cinemas, scenography, entertainments places lighting and everywhere a functional RGBW lighting is required. Designed and made in Italy.
