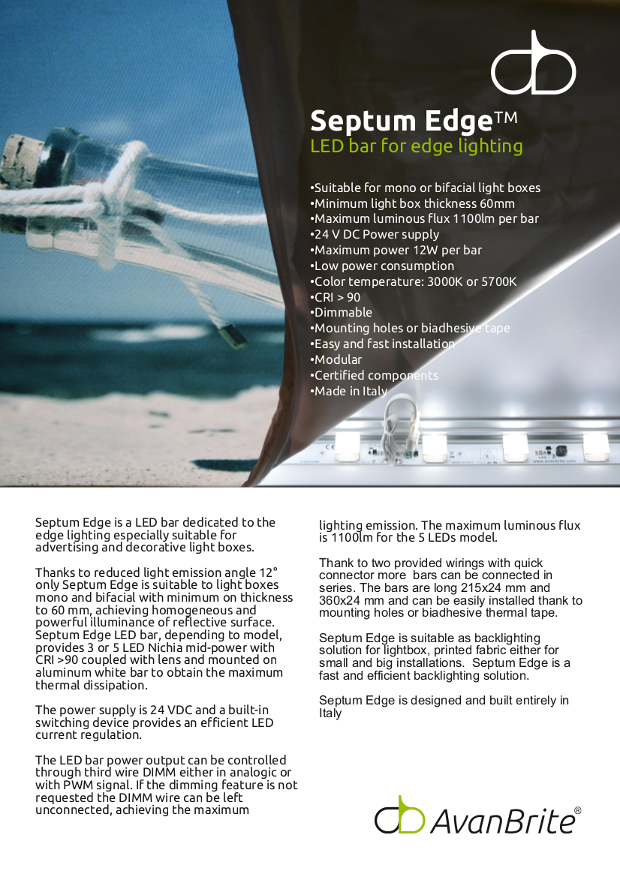

Septum Edge. LED bar for edge lighting

Septum Edge^™ is a LED bar dedicated to the edge lighting especially suitable for advertising and decorative light boxes. Thanks to reduced light emission angle 1 2° only Septum Edge is suitable to light boxes mono and bifacial with minimum on thickness to 60 mm, achieving homogeneous and powerful illuminance of reflective surface.

Septum Edge LED bar, depending to model, provides 3 or 5 LED Nichia mid-power with CRI >90 coupled with lens and mounted on aluminum white bar to obtain the maximum thermal dissipation. The LED bar power output can be controlled through third wire DIMM either in analogic or with PWM signal.

Thank to two provided wirings with quick connector more bars can be connected in series. The bars are long 21 5×24 mm and 360×24 mm and can be easily installed thank to mounting holes or biadhesive thermal tape.

Septum Edge is suitable as backlighting solution for lightbox, printed fabric either for small and big installations. Septum Edge is a fast and efficient backlighting solution. Septum Edge is designed and built entirely in Italy.
